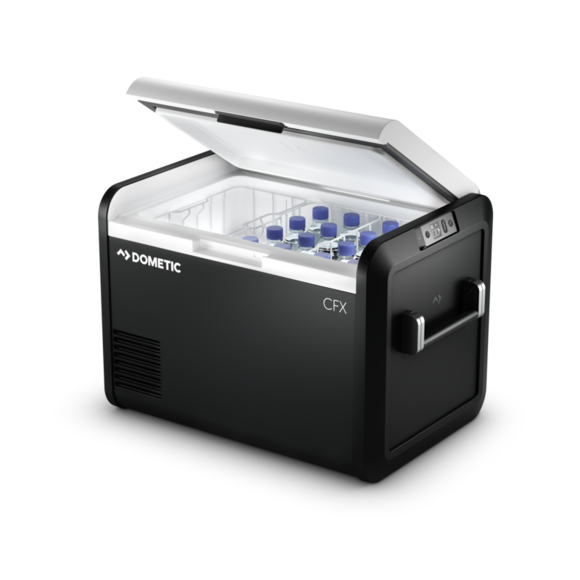

Dometic CFX3 IM55
Dometic CFX3 IM55
You can store an incredible amount of food and drinks in the Dometic CFX3 thanks to the internal compartment design. The CFX3 eliminates the dairy compartment, which means more room for all your favourite foods. Choose how you organise the space with a removable wire divider and enjoy a more even distribution of cool air with the extended evaporator, now on all inner walls of the unit.
Generous total capacity of 53 l
Rapid Ice Plate and included silicon ice trays produces ice in a matter of hours
Heavy-duty yet lightweight ExoFrame construction with fender frame protected edges and aluminium alloy handles
Powerful VMSO3 compressor cooling technology efficiently cools between +20 °C and –22 °C
Easy-to-read High-Resolution Colour Display and soft-touch buttons enable seamless control and monitoring of cool box performance
3-stage dynamic battery protection system prevents dead car battery or allows deep draw on dual batteries
CFX3 App allows temperature control via WiFi or Bluetooth and provides performance history
SPECIFICATIONS
GENERAL
SKU number 9600025331
Model CFX355IM
Model on label CFX355IM
SKU replaced by 9600029530
Scope of delivery 1 cooler, 1 manual, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, 1 icemaker, removable wire baskets
Single or Dual Zone Single
Product Description Portable compressor cool box with ice maker function, 53 l
Refrigeration technology Compressor
DIMENSIONS
Dimensions product depth 455 mm
Dimensions product height 480 mm
Dimensions product width 720 mm
Net weight 21.3 kg
Total volume (IEC 62552-3) 53.00 l
ELECTRICAL
Input voltage (AC) 100-240 V
Input voltage (DC) 12/24 V
Rated input current (AC) 1.00A at 100V, 0.42A at 240V A
Rated input current (DC) 8.9 A
Rated input power (AC) 52 W
Input frequency 50/60 Hz
PERFORMANCE
Refrigerant, type R134a
GWP 1430
Refrigerant amount 45 g
CO2 equivalent 0.064 t
Energy consumption (DC@5/25°C) 0.59 kWh/24h
Energy Consumption 12VDC (Internal@4C/Icemaker on(maintenance), Ambient@32C) 1.20 Ah/h
Annual energy consumption at AC (EN62552-3:2020) 47 kWh/a
Energy efficiency class (Regulation (EU) 2019/2016) C
Climate class (EN62552) N/T
Insulation Thickness 55.00 mm
Insulation Type PU (Polyurethane)
ADDITIONAL
Colour Slate / Mist
USB Port 5V, 2A
Connectivity Type Bluetooth, WiFi
Basket Yes
Threaded inserts in base for mounting M6
Drain plug Yes
Anti-condensation coil Yes
Interior light Yes, LED
Certificates ECE R10, CB, CE, GS
Cable length supply cable 2.00 m
LOGISTICS
EAN-13 4015704280050
Dimensions parcel depth 498 mm
Dimensions parcel height 523 mm
Dimensions parcel width 763 mm
Parcel weight 26.4 kg
